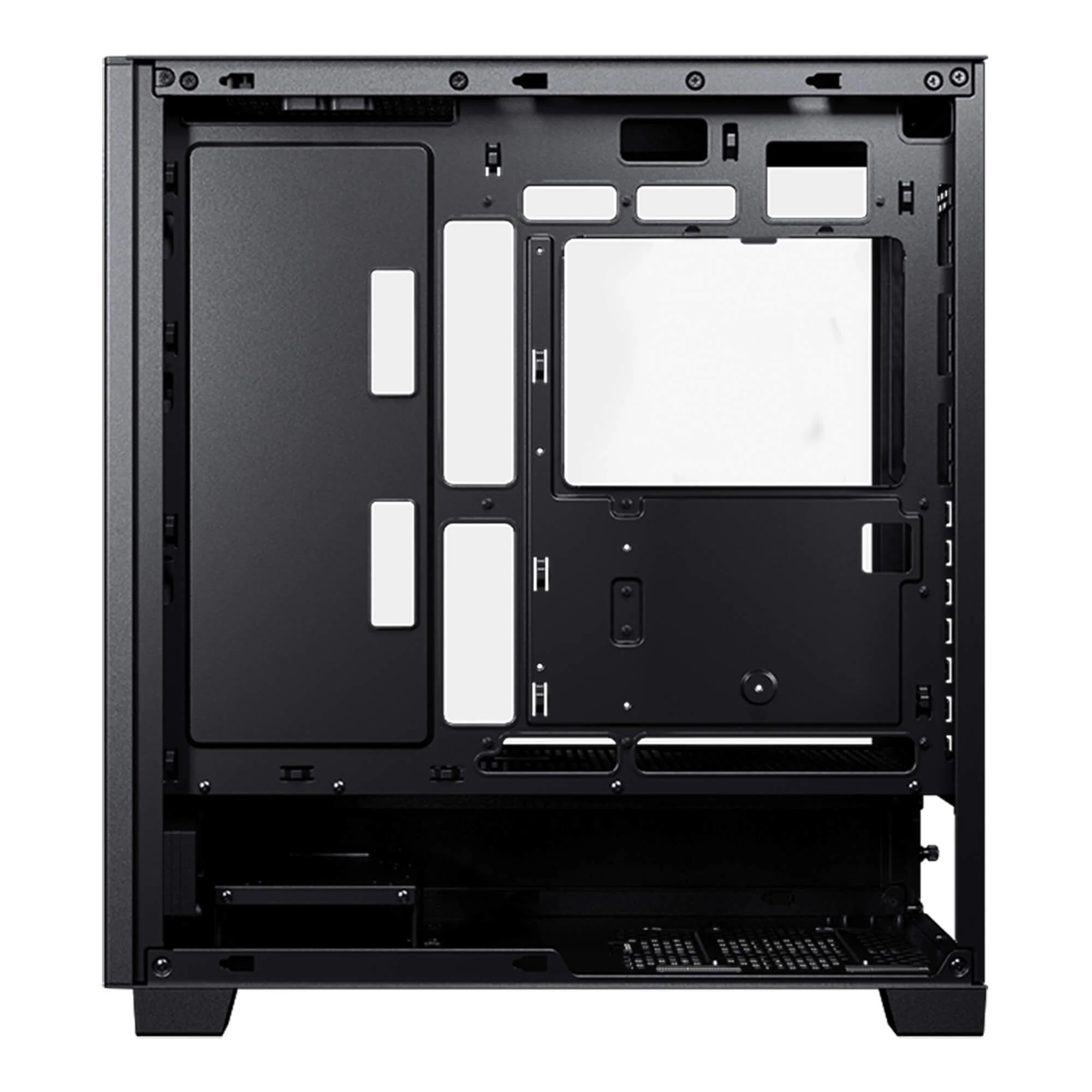

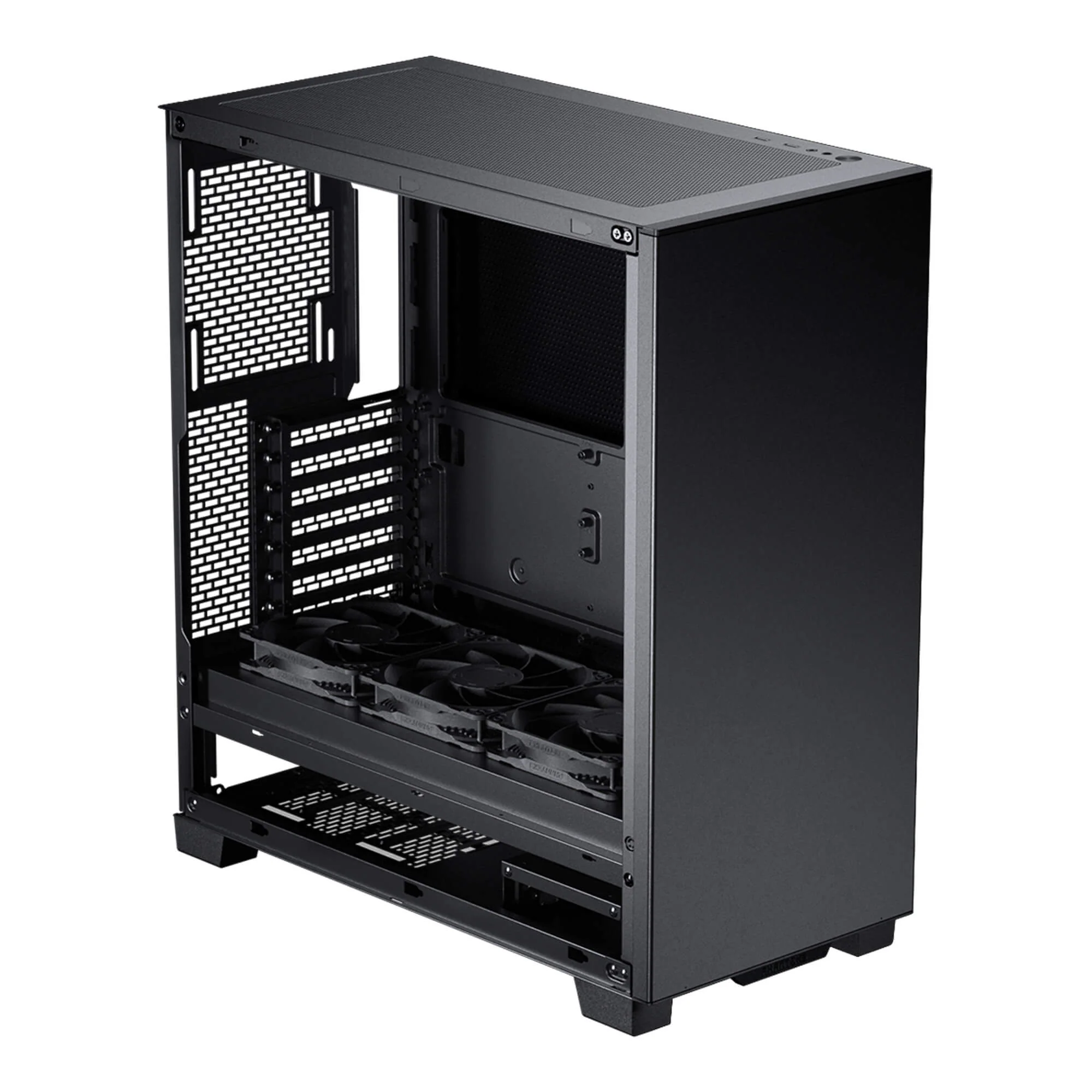

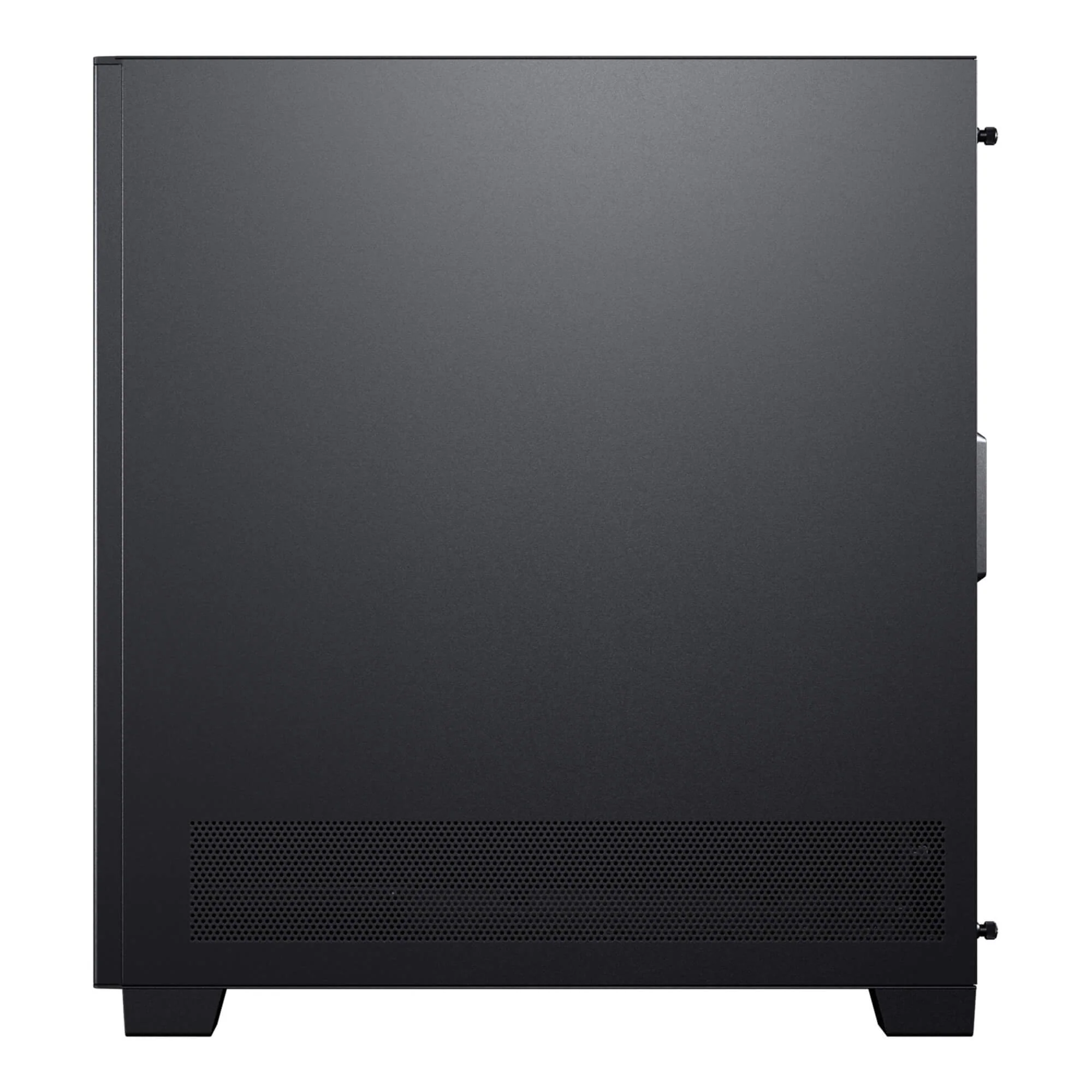

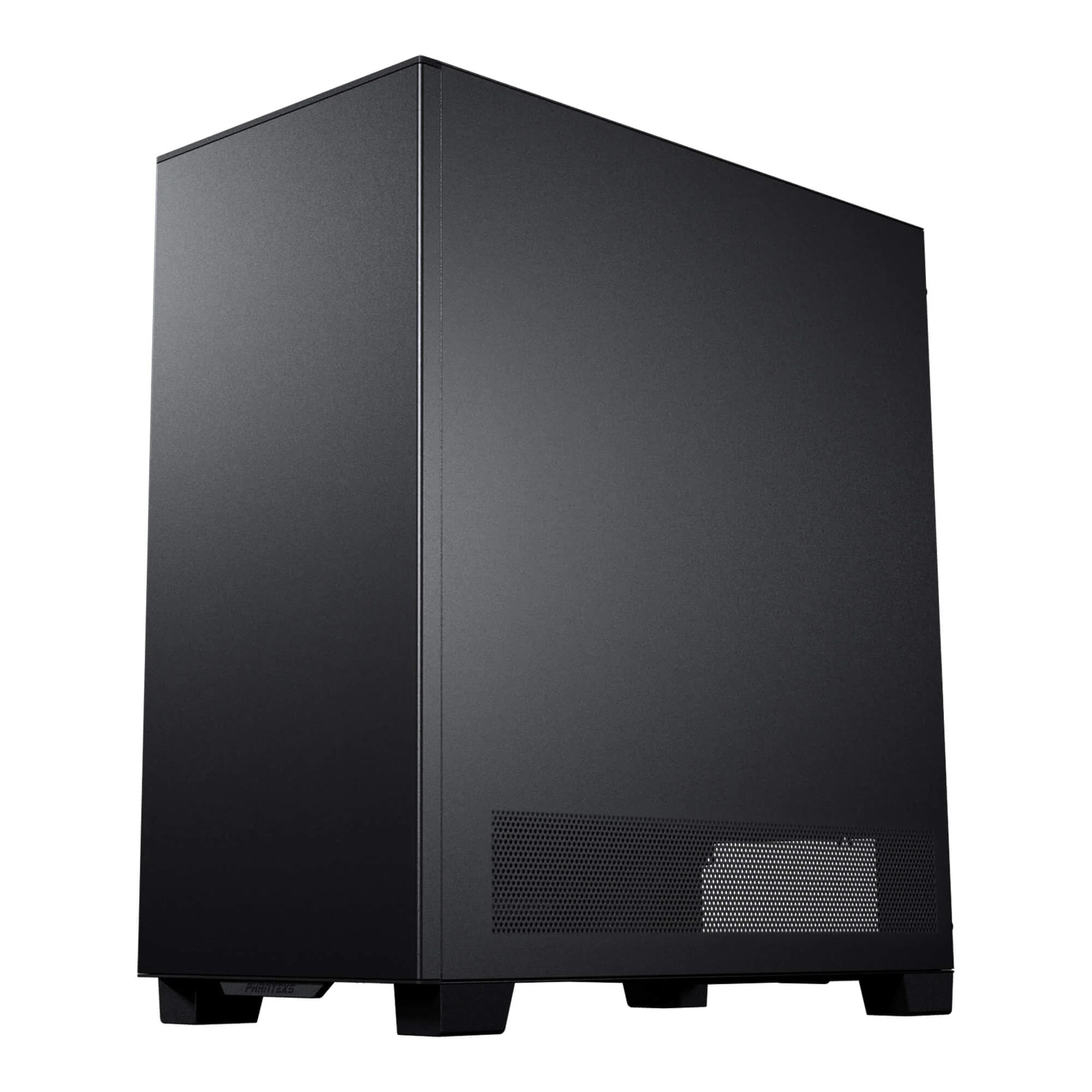

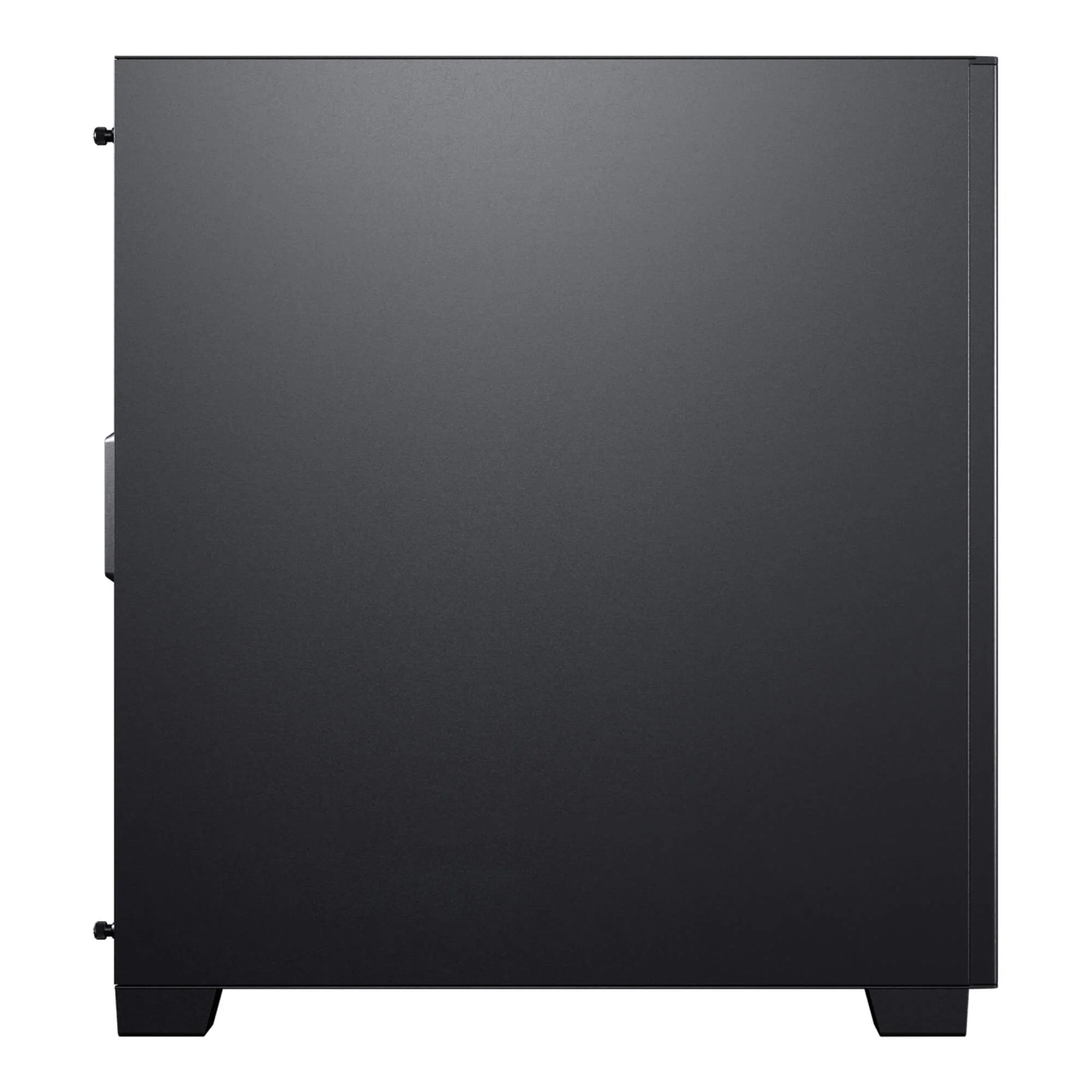

Phanteks XT Pro Silent Black
The XT-series chassis are crafted to accommodate the demands of new hardware releases offering generous internal space and advanced cooling capabilities. This model combines exceptional value with features designed for silent performance. It comfortably fits even the largest graphics cards with ample room for efficient cable management. The case's optimized cooling system supports up to 10 fan locations including options for 140mm fans and dedicated radiator space at the top ensuring quiet and efficient airflow.
The XT-Series also supports the latest mainboards with hidden rear connectors, enabling a clean and cable-free setup. Furthermore, the mid-plate includes 3x 120mm fan mounts providing direct cooling for the graphics card while maintaining a low noise profile.
|
Case Specifications |
||
|
Dimension |
450 x 230 x 500 mm | 17.7×9.05×19.68 in |
|
|
Form Factor |
Mid-Tower |
|
|
Material(s) |
Steel Chassis, ABS Plastic |
|
|
Mainboard Support |
ATX, Micro-ATX, Mini-ITX, E-ATX (Up to 280mm wide) |
|
|
Rear Connect Motherboard |
ATX |
|
|
Front I/O |
1x USB 3.0, 1x USB-C 3.0, Microphone/Headphone Combo, Power Button, Reset Button |
|
|
Connectors |
Front IO, HD-Audio, USB 3.0 |
|
|
|
|
|
|
Expansion & Drive Bays |
||
|
Expansion Slots |
7 |
|
|
Vertical GPU Support |
Yes, with optional bracket PH-PGPUKT5.0 |
|
|
Internal 3.5” |
2x (1x if 2x SSD installed) |
|
|
Internal 2.5” |
2x (0x if 2x HDD installed) |
|
|
|
||
|
Cooling |
120mm (Fan) |
140mm (Fan) |
|
Top |
3x |
2x |
|
Front |
- |
- |
|
Rear |
1x |
1x |
|
Mid-plate |
3x |
- |
|
|
|
|
|
Liquid Cooling |
120mm (Radiator) |
140mm (Radiator) |
|
Top |
Up to 360 |
- |
|
Front |
- |
- |
|
Rear |
120 |
- |
|
Bottom |
- |
- |
|
|
||
|
Clearance |
||
|
Graphic Card Length |
415mm | 16.33in |
|
|
CPU Cooler Height |
184mm | 7.24in |
|
|
PSU Length |
270mm | 10.62in |
|
|
Top Radiator |
415 x 138 x 60mm | 16.33 x 5.43 x 2.36in |
|
